產品描述

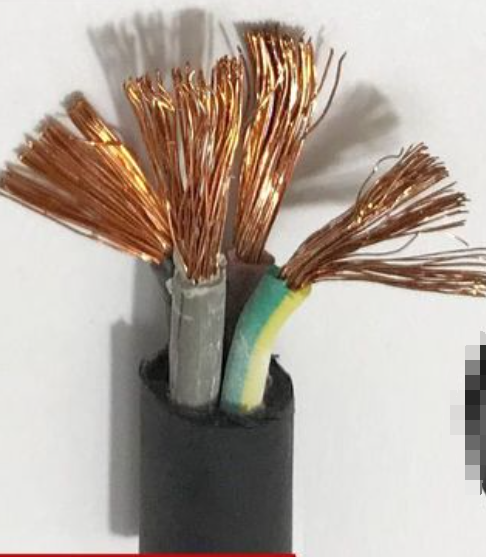

風力發電用電纜F-H07E1F1R F-H07E2F2R
一、適用范圍
風力發電用電纜F-H07E1F1R F-H07E2F2R產品適用于額定電壓450/750V及以下風能電纜，適用于自由移動，自由懸掛或固定安裝。在自由懸掛的安裝環境里，電纜可伴隨風力發電機旋轉自由扭轉。電纜具有耐低溫、柔軟、耐化學腐蝕、耐磨、抗沖擊、耐扭轉、阻燃性、防水、防紫外線、耐候等優良性能。
二、風力發電用電纜F-H07E1F1R F-H07E2F2R使用特性
1 電纜的額定電壓U0/U為450/750V。
2 電纜的長期允許工作溫度為70℃或90℃。
3 適用的低環境溫度為-45℃。
4 電纜敷設低溫度不低于-30℃。
5 電纜的小彎曲半徑為電纜直徑的6倍。
6 F-H07E1F1R、F-H07E2F2R電纜具有較好的抗彎曲和扭絞性能，適用于跨接機艙與塔筒部位使用，
連接于發電機與塔筒頂部的接線箱或地面接線箱之間。
7 電纜符合GB/T 18380.3-2001 B類阻燃性能要求。
三、型號及名稱
型號 | 名稱 | 執行標準 |
F-H07E1F1R | 乙丙橡皮絕緣氯丁橡膠護套風能發電用電力電纜 | 企業標準 |
F-H07E2F2R | 耐候型乙丙橡皮絕緣氯丁橡膠護套風能發電用電力電纜 |
13、電纜參數：
型號規格 | 導體結構 | 結緣厚度 | 護套厚度 | 電纜直徑mm | |
大 | 小 | ||||
H07BN4-F 1×1.5 | 30/0.25 | 0.8 | 1.4 | 5.7 | 7.1 |
H07BN4-F 1×2.5 | 49/0.25 | 0.9 | 1.4 | 6.3 | 7.9 |
H07BN4-F 1×4 | 56/0.30 | 1.0 | 1.5 | 7.2 | 9.0 |
H07BN4-F 1×6 | 84/0.30 | 1.0 | 1.6 | 7.9 | 9.8 |
H07BN4-F 1×10 | 84/0.40 | 1.2 | 1.8 | 9.5 | 11.9 |
H07BN4-F 1×16 | 126/0.40 | 1.2 | 1.9 | 10.8 | 13.4 |
H07BN4-F 1×25 | 196/0.40 | 1.4 | 2.0 | 12.7 | 15.8 |
H07BN4-F 1×35 | 276/0.40 | 1.4 | 2.2 | 14.3 | 17.9 |
H07BN4-F 1×50 | 396/0.40 | 1.6 | 2.4 | 16.5 | 20.6 |
H07BN4-F 1×70 | 360/0.50 | 1.6 | 2.6 | 18.6 | 23.3 |
H07BN4-F 1×95 | 475/0.50 | 1.8 | 2.8 | 20.8 | 26.0 |
H07BN4-F 1×120 | 608/0.50 | 1.8 | 3.0 | 22.8 | 28.6 |
H07BN4-F 1×150 | 756/0.50 | 2.0 | 3.2 | 25.2 | 31.4 |
H07BN4-F 1×185 | 925/0.50 | 2.2 | 3.4 | 27.6 | 34.4 |
H07BN4-F 1×240 | 1221/0.50 | 2.4 | 3.5 | 30.6 | 38.3 |
H07BN4-F 1×300 | 1517/0.50 | 2.6 | 3.6 | 33.5 | 41.9 |
H07BN4-F 1×400 | 2035/0.50 | 2.8 | 3.8 | 37.4 | 46.8 |
H07BN4-F 1×500 | 1769/0.60 | 3.0 | 4.0 | 41.3 | 52.0 |
H07BN4-F 1×630 | 2257/0.60 | 3.0 | 4.1 | 45.5 | 57.0 |
H07BN4-F 2×1.0 | 32/0.20 | 0.8 | 1.3 | 7.7 | 10.0 |
H07BN4-F 2×1.5 | 30/0.25 | 0.8 | 1.5 | 8.5 | 11.0 |
H07BN4-F 2×2.5 | 49/0.25 | 0.9 | 1.7 | 10.2 | 13.1 |
H07BN4-F 2×4 | 56/0.30 | 1.0 | 1.8 | 11.8 | 15.1 |
H07BN4-F 2×6 | 84/0.30 | 1.0 | 2.0 | 13.1 | 16.8 |
H07BN4-F 2×10 | 84/0.40 | 1.2 | 3.1 | 17.7 | 22.6 |
H07BN4-F 2×16 | 126/0.40 | 1.2 | 3.3 | 20.2 | 25.7 |
H07BN4-F 2×25 | 196/0.40 | 1.4 | 3.6 | 24.3 | 30.7 |
H07BN4-F 3×1.0 | 32/0.20 | 0.8 | 1.4 | 8.3 | 10.7 |
H07BN4-F 3×1.5 | 30/0.25 | 0.8 | 1.6 | 9.2 | 11.9 |
H07BN4-F 3×2.5 | 49/0.25 | 0.9 | 1.8 | 10.9 | 14.0 |
H07BN4-F 3×4.0 | 56/0.30 | 1.0 | 1.9 | 12.7 | 16.2 |
H07BN4-F 3×6.0 | 84/0.30 | 1.0 | 2.1 | 14.1 | 18.0 |
H07BN4-F 3×10 | 84/0.40 | 1.2 | 3.3 | 19.1 | 24.2 |
H07BN4-F 3×16 | 126/0.40 | 1.2 | 3.5 | 21.8 | 27.6 |
H07BN4-F 3×25 | 196/0.40 | 1.4 | 3.8 | 26.1 | 33.0 |
H07BN4-F 3×35 | 276/0.40 | 1.4 | 4.1 | 29.3 | 37.1 |
H07BN4-F 3×50 | 396/0.40 | 1.6 | 4.5 | 34.1 | 42.9 |
H07BN4-F 3×70 | 360/0.50 | 1.6 | 4.8 | 38.4 | 48.3 |
H07BN4-F 3×95 | 475/0.50 | 1.8 | 5.3 | 43.3 | 54.0 |
H07BN4-F 3×120 | 608/0.50 | 1.8 | 5.6 | 47.4 | 60.0 |
H07BN4-F 3×150 | 756/0.50 | 2.0 | 6.0 | 52.0 | 66.0 |
H07BN4-F 3×185 | 925/0.50 | 2.2 | 6.4 | 57.0 | 72.0 |
H07BN4-F 3×240 | 1221/0.50 | 2.4 | 7.1 | 65.0 | 82.0 |
H07BN4-F 3×300 | 1517/0.50 | 2.6 | 7.7 | 72.0 | 90.0 |
H07BN4-F 4×1.0 | 32/0.20 | 0.8 | 1.5 | 9.2 | 11.9 |
H07BN4-F 4×1.5 | 30/0.25 | 0.8 | 1.7 | 10.2 | 13.1 |
H07BN4-F 4×2.5 | 49/0.25 | 0.9 | 1.9 | 12.1 | 15.5 |
H07BN4-F 4×4.0 | 56/0.30 | 1.0 | 2.0 | 14.0 | 17.9 |
H07BN4-F 4×6.0 | 84/0.30 | 1.0 | 2.3 | 15.7 | 20.0 |
H07BN4-F 4×10 | 84/0.40 | 1.2 | 3.4 | 20.9 | 26.5 |
H07BN4-F 4×16 | 126/0.40 | 1.2 | 3.6 | 23.8 | 30.1 |
H07BN4-F 4×25 | 196/0.40 | 1.4 | 4.1 | 28.9 | 36.6 |
H07BN4-F 4×35 | 276/0.40 | 1.4 | 4.4 | 32.5 | 41.1 |
H07BN4-F 4×50 | 396/0.40 | 1.6 | 4.8 | 37.7 | 47.5 |
H07BN4-F 4×70 | 360/0.50 | 1.6 | 5.2 | 42.7 | 54.0 |
H07BN4-F 4×95 | 475/0.50 | 1.8 | 5.9 | 48.4 | 61.0 |
H07BN4-F 4×120 | 608/0.50 | 1.8 | 6.0 | 53.0 | 66.0 |
H07BN4-F 4×150 | 756/0.50 | 2.0 | 6.5 | 58.0 | 73 |
H07BN4-F 4×185 | 925/0.50 | 2.2 | 7.0 | 64.0 | 80.0 |
H07BN4-F 4×240 | 1221/0.50 | 2.4 | 7.7 | 72.0 | 91.0 |
